A 3 phase motor capacitor calculator helps determine the amount of reactive power compensation required to improve the power factor of a three-phase induction motor.

By entering the motor’s active power, existing power factor, target power factor, line voltage, frequency, and capacitor connection, you can calculate:

• Existing reactive power
• Target reactive power
• Required capacitor compensation in kVAR
• Capacitor capacitance in µF
• Capacitor current
• Required capacitance per capacitor

The calculator is useful for electricians, electrical engineers, technicians, maintenance personnel, students, and industrial professionals working with three-phase motors and power-factor correction systems.

Important: The calculated capacitance is a theoretical value. Final capacitor selection must consider motor loading, harmonics, resonance, capacitor voltage rating, switching conditions, temperature, protection, and the manufacturer’s specifications.

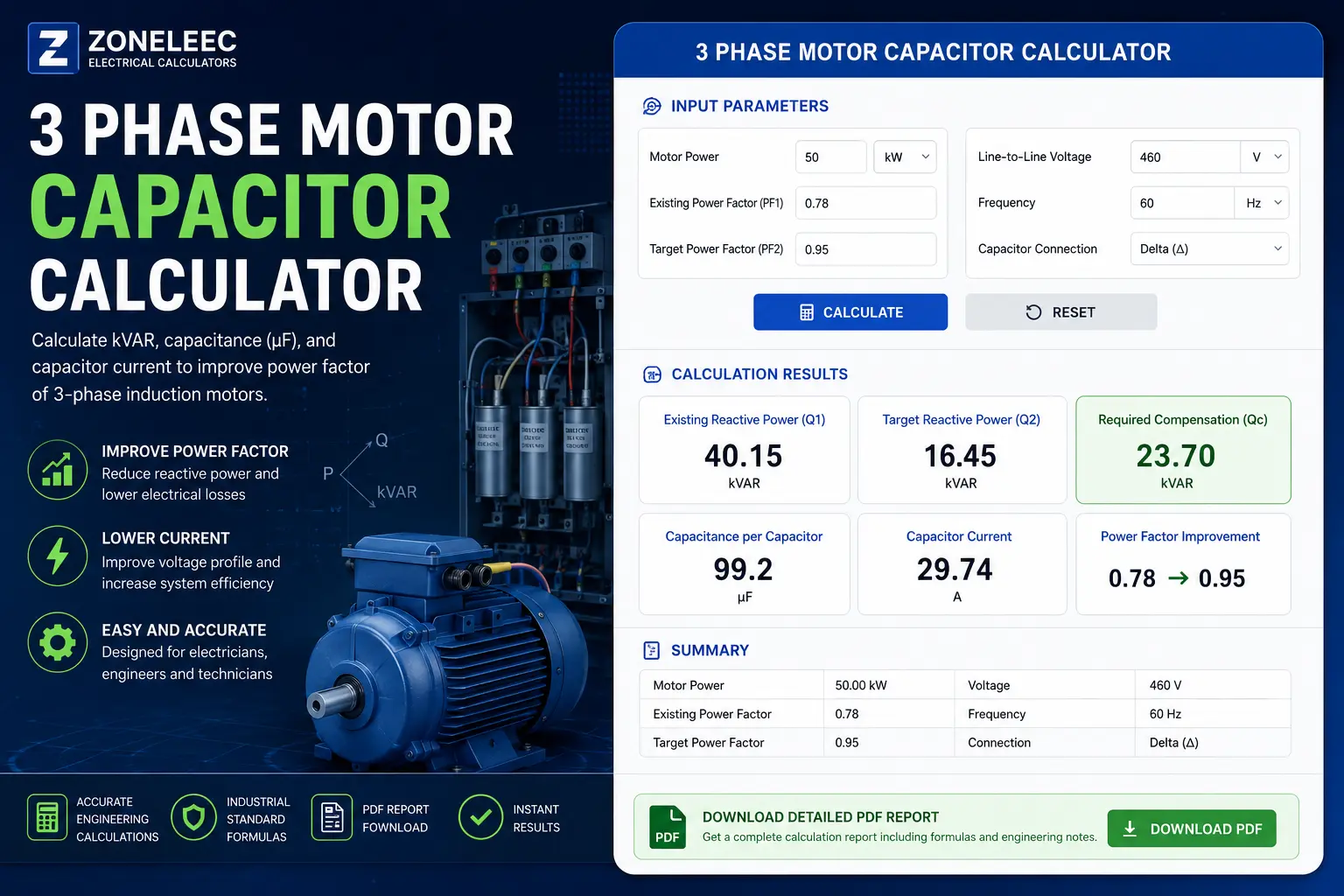

1. 3 Phase Motor Capacitor Calculator

2. What Is Capacitor Sizing?

Capacitor sizing is the process of determining the appropriate capacitance or reactive-power rating required to improve the power factor of an electrical load.

Three-phase induction motors are inherently inductive loads. Their magnetic fields require reactive power to establish the motor's magnetic flux.

The motor therefore draws two major components of power:

• Active power (kW) — performs useful mechanical work.
• Reactive power (kVAR) — supports the magnetic field.
• Apparent power (kVA) — combination of active and reactive power.

The relationship can be represented as:

S² = P² + Q²

Where:

• S = apparent power in kVA
• P = active power in kW
• Q = reactive power in kVAR

A low power factor means that more apparent power and current are required to deliver the same useful active power.

Adding a properly sized capacitor supplies part of the required reactive power locally.

As a result:

Motor → draws less reactive power from the supply

Supply → delivers less current for the same active power

This can improve:

• Power factor
• Voltage profile
• Transformer utilization
• Feeder capacity
• Electrical losses
• Overall system efficiency

However, a capacitor does not increase the motor's mechanical output power.

3. Three-Phase Motor Capacitor Formula

The fundamental formula for power-factor correction is:

Qc = P × [tan(φ₁) − tan(φ₂)]

Where:

• Qc = required capacitor compensation in kVAR
• P = active power in kW
• φ₁ = angle corresponding to the existing power factor
• φ₂ = angle corresponding to the target power factor

The angles are calculated using:

φ₁ = cos⁻¹(PF₁)

φ₂ = cos⁻¹(PF₂)

Therefore, the complete calculation can be written as:

Qc = P × [tan(cos⁻¹(PF₁)) − tan(cos⁻¹(PF₂))]

This is the main equation used by the Zoneleec calculator.

3.1 Existing Reactive Power

The existing reactive power is:

Q₁ = P × tan(φ₁)

For example, if:

• P = 50 kW
• PF₁ = 0.78

First calculate the angle:

φ₁ = cos⁻¹(0.78)

φ₁ ≈ 38.74°

Then:

tan(38.74°) ≈ 0.803

Therefore:

Q₁ = 50 × 0.803

Q₁ ≈ 40.15 kVAR

3.2 Target Reactive Power

Suppose the target power factor is 0.95.

First:

φ₂ = cos⁻¹(0.95)

φ₂ ≈ 18.19°

Then:

tan(18.19°) ≈ 0.329

Therefore:

Q₂ = 50 × 0.329

Q₂ ≈ 16.45 kVAR

3.3 Required Capacitor kVAR

Now subtract the target reactive power from the existing reactive power:

Qc = Q₁ − Q₂

Substituting the values:

Qc = 40.15 − 16.45

Qc ≈ 23.70 kVAR

Therefore:

Required capacitor compensation = 23.70 kVAR

This is much clearer than presenting the formula as an unexplained mathematical expression.

4. Capacitance Calculation

Once the required capacitor rating in kVAR is known, the capacitance can be calculated.

The formula depends on whether the three capacitor elements are connected in Delta or Star.

Delta Connection

For a delta-connected capacitor bank:

Qc = 3 × 2πfCV²

Rearranging:

C = Qc / (3 × 2πfV²)

Where:

• C = capacitance of each capacitor in farads
• Qc = total capacitor reactive power in VAR
• f = frequency in Hz
• V = line-to-line voltage in volts

To convert farads to microfarads:

C(µF) = C(F) × 1,000,000

Star Connection

For a star-connected capacitor bank:

Qc = 2πfCV²

Therefore:

C = Qc / (2πfV²)

The important difference is that the voltage across each capacitor is different between Delta and Star connections.

This is why the calculator must know the capacitor connection before calculating the capacitance.

6. Capacitor Current

The capacitor current can also be estimated from the reactive power:

Ic = Qc / (√3 × V)

For the example:

Ic = 23,700 / (√3 × 460)

Therefore:

Ic ≈ 29.74 A

This value is useful when evaluating:

• Capacitor switching equipment
• Contactors
• Protection
• Conductors
• Disconnects
• Busbars
• Capacitor-bank components

7. Capacitor Selection Table

The following table can be used as a general engineering reference.

These are application ranges, not universal motor sizing rules.

The actual capacitor rating should be calculated from the motor operating conditions and then matched to available manufacturer ratings.

8. Individual Motor Capacitor vs Capacitor Bank

There are two common approaches to power-factor correction.

Individual Motor Correction

A capacitor is installed directly at or near the motor.

Advantages

• Reactive power is supplied close to the load.
• Reduces reactive current in upstream conductors.
• Useful for large motors operating for long periods.
• Can reduce demand on upstream electrical equipment.

Disadvantages

• Capacitor must be correctly coordinated with the motor.
• Switching and isolation arrangements require careful design.
• Incorrect sizing can cause overcorrection.

Centralized Capacitor Bank

A capacitor bank is installed at the main distribution board or switchboard.

Advantages

• Easier centralized control.
• Automatic capacitor steps can follow changing loads.
• Suitable for facilities with many motors.
• Easier to maintain in some installations.

Disadvantages

• Reactive current may still flow through individual motor feeders.
• Harmonic resonance must be considered.
• Requires appropriate capacitor-bank control and protection.

For facilities with highly variable loads, an automatic power factor correction (APFC) system may be more appropriate than fixed capacitors.

9. Single-Phase vs Three-Phase Motor Capacitors

Single-phase and three-phase motors should not be treated as identical capacitor-sizing problems.

A starting capacitor is fundamentally different from a capacitor used for power-factor correction.

Do not use the power-factor correction formula to select a motor starting capacitor.

For starting-capacitor calculations, link to:

[Starting Capacitor Calculator]

10. What Is the Difference Between a Starting Capacitor and a Power-Factor Capacitor?

This distinction is important.

Starting Capacitor

A starting capacitor is used primarily to create the necessary phase shift and starting torque in certain motor designs.

It is generally associated with single-phase motors.

The capacitor is often switched out of the circuit after the motor accelerates.

Power-Factor Correction Capacitor

A power-factor correction capacitor supplies leading reactive power to offset the lagging reactive power of inductive loads.

It is commonly used with:

• Three-phase induction motors
• Transformers
• Industrial distribution systems
• Motor control centers
• Manufacturing facilities

Therefore:

Starting capacitor ≠ power-factor correction capacitor

11. Common Mistakes When Sizing a 3 Phase Motor Capacitor

Mistake 1 — Using Motor HP Directly as kW

HP and kW are not identical.

The basic conversion is:

1 HP ≈ 0.746 kW

But motor nameplate HP represents mechanical output, while power-factor calculations require electrical active input power.

Motor efficiency should therefore be considered when converting mechanical motor output into electrical input power.

Mistake 2 — Ignoring Motor Loading

A motor does not necessarily operate continuously at its rated load.

Power factor changes with loading.

A capacitor correctly sized for full-load operation may produce excessive correction when the motor operates lightly loaded.

Mistake 3 — Correcting the Power Factor to Exactly 1.00

Trying to force the power factor to unity is often unnecessary and can create overcorrection problems.

A practical target might be around:

0.90–0.98

depending on the installation.

The appropriate target should be based on the utility requirements, operating profile, and engineering design.

Mistake 4 — Ignoring Harmonics

Modern industrial installations may contain:

• Variable-frequency drives
• UPS systems
• Rectifiers
• Switching power supplies
• LED drivers
• Welders
• Power electronic converters

Capacitors can interact with system inductance and create resonance.

A harmonic study may therefore be required before installing substantial capacitor banks.

Mistake 5 — Using the Wrong Voltage

For a three-phase Delta capacitor calculation, the formula uses the line-to-line voltage across each capacitor.

Using phase voltage instead can produce a significantly incorrect capacitance value.

Mistake 6 — Forgetting Frequency

Capacitive reactance depends on frequency.

Therefore, the same capacitor does not provide the same reactive power at 50 Hz and 60 Hz.

For a fixed capacitance:

Qc ∝ f

So frequency must be included in the calculation.

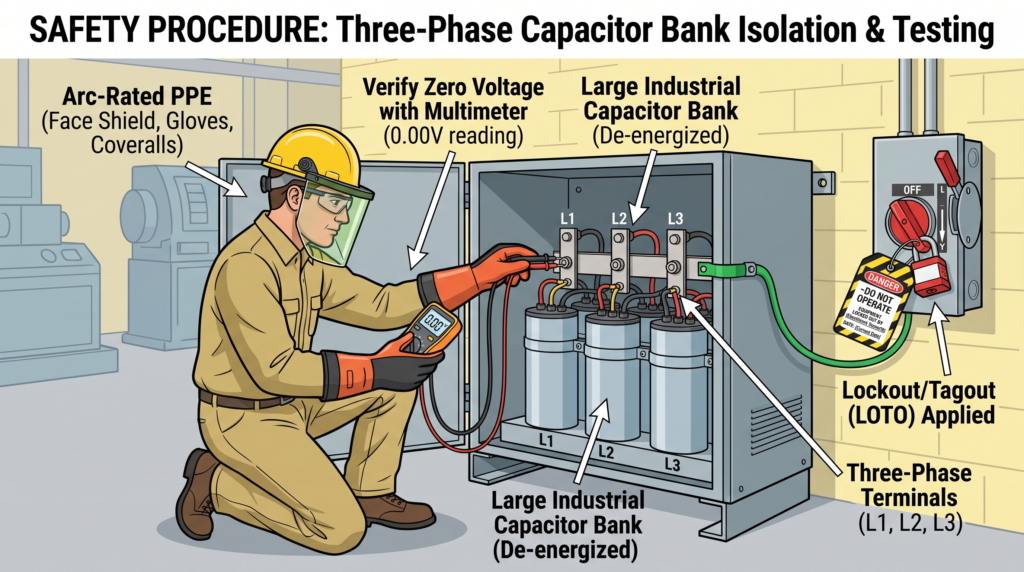

12. Safety Considerations

Power-factor correction capacitors store electrical energy.

Even after the supply has been disconnected, dangerous voltage may remain across the capacitor terminals if the discharge system is defective or insufficient.

Before working on capacitor equipment:

1. Disconnect the supply.
2. Apply lockout/tagout procedures.
3. Verify isolation.
4. Wait for the manufacturer's specified discharge time.
5. Test for absence of voltage.
6. Follow the manufacturer's discharge procedure.
7. Use appropriate PPE.
8. Inspect the capacitor and associated equipment for damage.
9. Verify correct capacitor voltage rating.
10. Confirm that protection and switching equipment are correctly rated.

For industrial installations, the design should also consider:

• Short-circuit protection
• Overcurrent protection
• Capacitor switching
• Discharge resistors
• Harmonics
• Resonance
• Temperature
• Ventilation
• Enclosure requirements
• Earthing/bonding
• Maintenance procedures

Always follow applicable local electrical regulations and the equipment manufacturer's instructions.

13. NEC, IEC and IEEE Considerations

The exact requirements depend on the installation jurisdiction and equipment type.

For US installations, relevant requirements can include the National Electrical Code (NEC), particularly provisions dealing with capacitors, conductors, overcurrent protection, disconnecting means, and motor installations.

For international installations, relevant IEC standards may include:

• IEC 60252-1 — AC motor capacitors
• IEC 60831-1 — Low-voltage shunt power capacitors
• IEC 61921 — Low-voltage power factor correction capacitor banks

For capacitor application and performance considerations, IEEE 18 is also an important reference for shunt power capacitors.

Standards should always be checked against the current edition applicable to your installation.

14. When Should You Use a 3 Phase Motor Capacitor Calculator?

A calculator is particularly useful during:

Electrical design

Estimate the required reactive compensation during preliminary system design.

Maintenance

Investigate poor power factor and determine an initial capacitor requirement.

Industrial upgrades

Estimate the size of a capacitor bank required after adding motors or other inductive loads.

Energy audits

Evaluate potential power-factor correction requirements.

Training

Students and technicians can use the calculation to understand the relationship between:

kW → PF → kVAR → capacitance

15. Practical Engineering Workflow

For a real installation, don't simply calculate a capacitor and immediately connect it.

Use this workflow:

Step 1 — Measure the motor

Determine:

• Voltage
• Current
• Active power
• Power factor
• Operating load
• Operating hours

Step 2 — Determine the required PF

Establish the desired target based on:

• Utility requirements
• Plant operating conditions
• Electrical design
• Economic considerations

Step 3 — Calculate kVAR

Use:

Qc = P × [tan(φ₁) − tan(φ₂)]

Step 4 — Select capacitor configuration

Determine whether the capacitor system is:

• Delta
• Star
• Fixed
• Automatic stepped

Step 5 — Check harmonics

If nonlinear loads are significant, investigate resonance and harmonic distortion.

Step 6 — Select equipment

Select:

• Capacitors
• Contactors
• Fuses/breakers
• Disconnects
• Conductors
• Protection
• Controllers

Step 7 — Verify operation

After installation, measure:

• Voltage
• Current
• PF
• kVAR
• Harmonic distortion
• Capacitor temperature

16. Common Questions About Three-Phase Motor Capacitors

FAQ 1: How do I calculate a capacitor for a 3 phase motor?

Calculate the required reactive compensation using:

Qc = P × [tan(φ₁) − tan(φ₂)]

Then convert the required kVAR into capacitance using the appropriate Delta or Star capacitor equation.

FAQ 2: How many µF does a 3 phase motor need?

There is no single µF value for all three-phase motors.

The required capacitance depends on:

• Motor power
• Existing PF
• Target PF
• Voltage
• Frequency
• Capacitor connection

Use the Zoneleec calculator to determine the theoretical capacitance.

FAQ 3: Can I connect a capacitor directly to a three-phase motor?

A capacitor can be connected for power-factor correction in appropriate applications, but the installation must be correctly designed.

Motor operating conditions, switching arrangements, protection, harmonics, resonance, and manufacturer recommendations must be considered.

FAQ 4: Is Delta or Star better for a three-phase capacitor?

Neither is universally better.

The required capacitance per capacitor differs because the voltage across each capacitor differs between Delta and Star.

The connection should be selected based on the capacitor equipment, voltage rating, system design, and manufacturer requirements.

FAQ 5: What capacitor size do I need for a 50 kW motor?

It depends on the initial and target power factors.

For example, at:

• 50 kW
• PF = 0.78
• Target PF = 0.95

the theoretical compensation is approximately:

23.7 kVAR

At 460 V, 60 Hz, Delta connection, this corresponds to approximately:

99.2 µF per capacitor

FAQ 6: Does a capacitor reduce motor power consumption?

A power-factor correction capacitor does not directly reduce the motor's mechanical energy requirement.

It reduces the reactive power supplied by the upstream electrical system and can reduce current and associated distribution losses.

Actual energy savings depend on the installation and operating conditions.

FAQ 7: Can capacitor banks cause harmonics?

Yes.

Capacitors can interact with the inductance of transformers and distribution networks and potentially create resonant conditions.

Installations containing significant nonlinear loads should be evaluated for harmonic distortion and resonance before capacitor-bank installation.

FAQ 8: Should I correct the motor power factor to 1.0?

Not necessarily.

Overcorrection can cause leading power factor and other undesirable operating conditions.

A practical target is normally selected below unity and based on the actual installation requirements.

17. Related Zoneleec Calculators

If you're working with motors and electrical power systems, these calculators can be used together.

Starting Capacitor Calculator

Use this when you need to estimate the requirements of a motor starting capacitor, particularly for single-phase motor applications.

Power Factor Correction Calculator

Use this calculator to determine the reactive compensation required to improve the power factor of an electrical load or installation.
